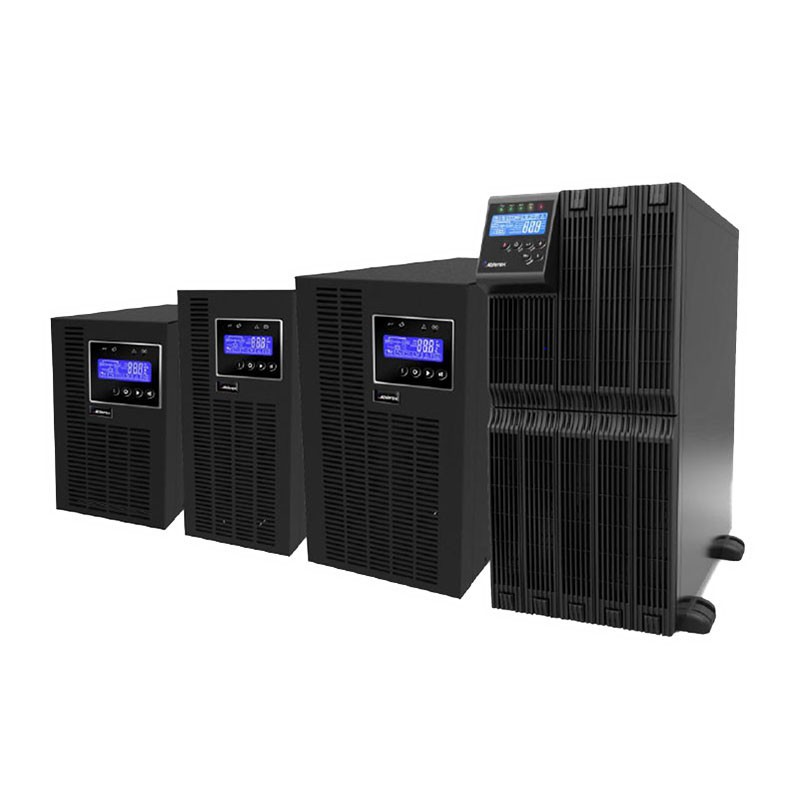

Ablerex EVO6000 6kVA 5400W On-line Double Conversion UPS Tower
The Ablerex EVO Series is an on-line double conversion UPS, density optimized (up to 10,000VA) powered system. Structural evolution maximize backup time while reducing energy cost. The EVO Series can be easily integrated into a wide variety of IT environments with advanced power management capability. And, with one of the best price/performance ratios, this UPS offers a low total cost of ownership.
Specification
Model :EVO 6000
Input
Voltage 110Vac~300Vac**
Frequency 45Hz~65Hz
Phase Single Phase with Ground
Capacity 6000VA/5400W
Output
Voltage 200/208/220/230/240
Frequency 3Hz or 1Hz (selectable)
Harmonic Distortion <3% (at full linear load)
Current Crest Factor 3:1
Efficiency 90%
Waveform Pure Sine Wave
Battery
Number of Batteries 20pcs
Type & Capacity Sealed Lead Acid Maintenance Free, 12V/7AH or 12V/9AH upon request
Rated Battery Voltage 240Vdc
External Battery Application Yes
Display
LCD Input Voltage / Input Frequency / Output Voltage / Output Frequency / Load Percentage / Battery Voltage / Temperature
Alarms
Audible and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
Protection
Short Circuit Output Breaker/Electronic Circuit
Full Protection
Overload, Over Temperature, Short Circuit, Discharge, Overcharge
Special Features
DC Start Yes
Parallel Function Yes, with optional external parallel box (consult Ablerex)
Physical
Dimension, W x D x H (mm) 220x640x440
Weight (kg) 52
Outlets*** Terminal Type
Interface
Communication Port Standard: USB and RS232
Options Slot Dry Contact, SNMP/Web Card, RS485, EPO
Standards & Certifications
Safety & EMC IEC/EN 62040-1, IEC/EN 62040-2
Markings CE
