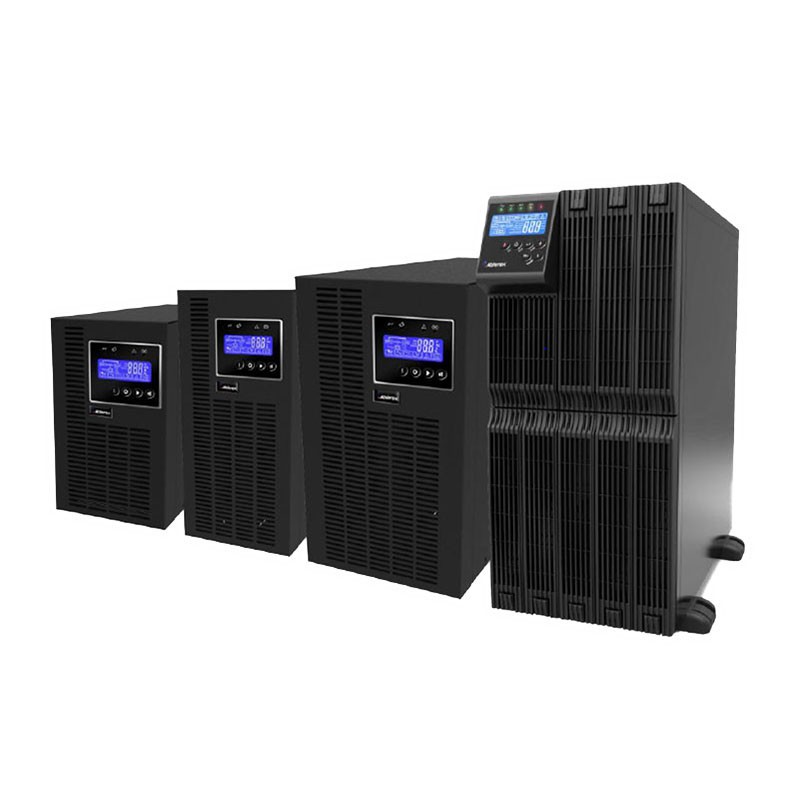

Ablerex EVO10000 Series EVO 10kVA 9000 Watts On-line UPS Tower

The Ablerex EVO Series is an on-line double conversion UPS, density optimized (up to 10,000VA) powered system. Structural evolution maximize backup time while reducing energy cost. The EVO Series can be easily integrated into a wide variety of IT environments with advanced power management capability. And, with one of the best price/performance ratios, this UPS offers a low total cost of ownership.


Ablerex EVO10000 Series EVO 10kVA 9000 Watts On-line UPS Tower Technical Specification
Model :EVO 10000
Input Voltage 110Vac~300Vac**
Frequency 45Hz~65Hz
Phase Single Phase with Ground
Capacity 10000VA/9000W
Voltage : 200/208/220/230/240
Frequency : 3Hz or 1Hz (selectable)
Harmonic Distortion :<3% (at full linear load)
Current Crest Factor 3:1
Efficiency 90%
Waveform Pure Sine Wave
Number of Batteries 20pcs
Rated Battery Voltage 240Vdc
External Battery Application Yes
LCD Input Voltage / Input Frequency / Output Voltage / Output Frequency / Load Percentage / Battery Voltage / Temperature
Audible and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault
Short Circuit Output Breaker/Electronic Circuit
Full Protection Overload, Over Temperature, Short Circuit, Discharge, Overcharge
Special Features DC Start Yes Parallel Function Yes, with optional external parallel box (consult Ablerex)
Physical Dimension, W x D x H (mm) 220x640x440
Weight (kg) 96
Communication Port Standard: USB and RS232
Options Slot Dry Contact, SNMP/Web Card, RS485, EPO
Standards & Certifications Safety & EMC IEC/EN 62040-1, IEC/EN 62040-2
