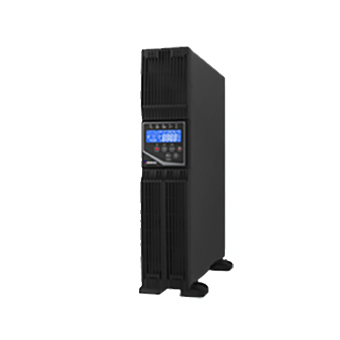

Ablerex ARES Plus RT 3000VA 2700 Watts Online UPS
■ True On-line Double Conversion Topology ■ Advanced DSP Control Technology ■ Rack / Tower Convertible ■ 0.9 Output Power Factor ■ Wide Input Voltage Range ■ Active Harmonic Current Control ■ LCD/LED Display ■ Patent Backup Runtime Estimation ■ Multiple Operation Mode ■ Remote Emergency Power Off (REPO) ■ Remote On Off control (ROO) ■ Optional Programmable Outlets ■ Easy Firmware Flash Upgrade
Specification
Specifications:
Model ARES PLUS RT 3000
Phase Single + G
Input
Voltage Range**110~300Vac
Frequency Range 45-65Hz (Auto sensing)
Input Power Factor ≧0.99@ 100% linear load
Output
Capacity**3000VA/2700W
Output Voltage 220/230/240 Vac
Output Power Factor 0.9
Output Connection
6 x IEC-C13 Sockets 1 x IEC-C19 Socket
Output Voltage Distortion <3% @ 100% Linear load <7% @ 100% non-linear load
Output Voltage Regulation ±1%
Frequency Range ±1Hz or ±3Hz (Selectable)
Crest Factor 3:1
Output Waveform Pure Sine Wave
Efficiency
Line Mode Up to 92%
High Efficiency Mode Upt to 97%
Battery
Capacity 2Vdc/9Ah
Battery Number 6
Battery Voltage 72
Recharge Time (to 90% 4 hours
Display
LCD measures Volatge / Frequency / Load level / Battery level / Output current / Estimated autonomy
Self-Diagnostics Upon Power-on, Front Panel Setting & Software Control, 24 hours routine check
Alarm Audible or Visual Line Failure / Battery Low / Transfer to Bypass / System Fault
Protection
Full Protection Overload, Over temperature, Short circuit, Discharge, overcharge
Multi-Mode Normal/ ECO/ CVCF
Function
DC start Yes
Physical
Dimensions 440 x 88 x 600
(WxHxD, mm/inch) 7.3×3.5×23.6
Net Weight (kgs/lbs) 24.6/54.2
Interface
Standard RS-232, EPO
Option USB, RS-485 (Modbus), Dry Contact Relay, SNMP/WEB Card
Compatible Platforms Microsoft Windows series, Linux, Mac, etc.
Standards and Certifications***
Safety EN62040-1
EMC EN62040-2 (C2)
Marks CE
