Specifications:

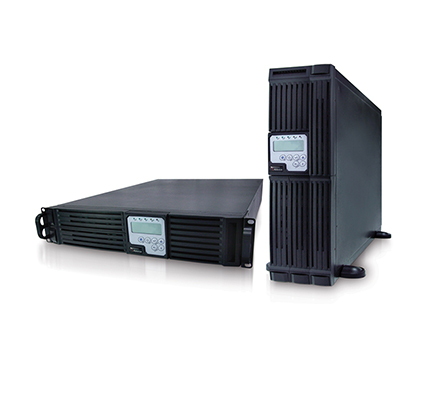

Model MSII10000RT
Phase Single / Three + G
Input
Voltage 160~280Vac (1Φ) / 277 – 485Vac (3Φ)**
Frequency 45 ~ 65 Hz
Phase Single / Three + G
Power Factor Up to 0.99 at Linear Load
Output
Voltage 200/208/220/230/240Vac
Capacity 1000VA /9000W
Frequency (Synchronized Range) ±1Hz or ±3Hz (Selectable)
Frequency (Battery Mode) ±0.1% unless synchronized to line
Current Crest Ratio 3:1

Output Connection
Terminal Type

Harmonic Distortion < 3% (at full linear load)
Output Waveform Pure Sine Wave
Transfer Time (AC to DC) 0ms
Efficiency 90%

Battery
Number of batteries 20pcs
Type Sealed Lead Acid Maintenance Free
Capacity 12V/9AH
Rated Battery Voltage 240Vdc

Display
Status On LED + LCD Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, and Transferring with interruption & UPS Fault
Readings on LCD Input Voltage, Input Frequency, Output Voltage, Output Current, Output Frequency, Load Percentage, Battery Voltage & Inner Temperature
Self-Diagnostics Upon Power-on, Front Panel Setting & Software Control, 24-hour routine checking

Alarms
Audible and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions

Protection
Overload Capacity
Inverter Supply: 2 cycles before switching bypass
Bypass Supply: 8 cycles before stopping supply load.
Short Circuit Output Breaker/Electronic Circuit
EPO Output shuts down immediately
Over Temperature AC Mode: Switch to Bypass / Backup Mode: Switch off the UPS

Physical
Dimensions (WxHxD,mm/inch) 17.3×5.2×26.8
Weight(kg/lbs) 45/99.2(8K/10KRT)

Interface
Interface Type Standard RS232
Communication Slots 2nd RS232, USB, RS485, Relay Contact, SNMP/WEB Card
Compatible Platforms Microsoft Windows series, Linux, Mac, etc.

Standards and Certifications
Safety Standard EN62040-1-1, UL1778
EMC Standard EN62040-2, EN61000-3-2, EN61000-3-3, FCC Class A
Marks CE, cUL, UL****
