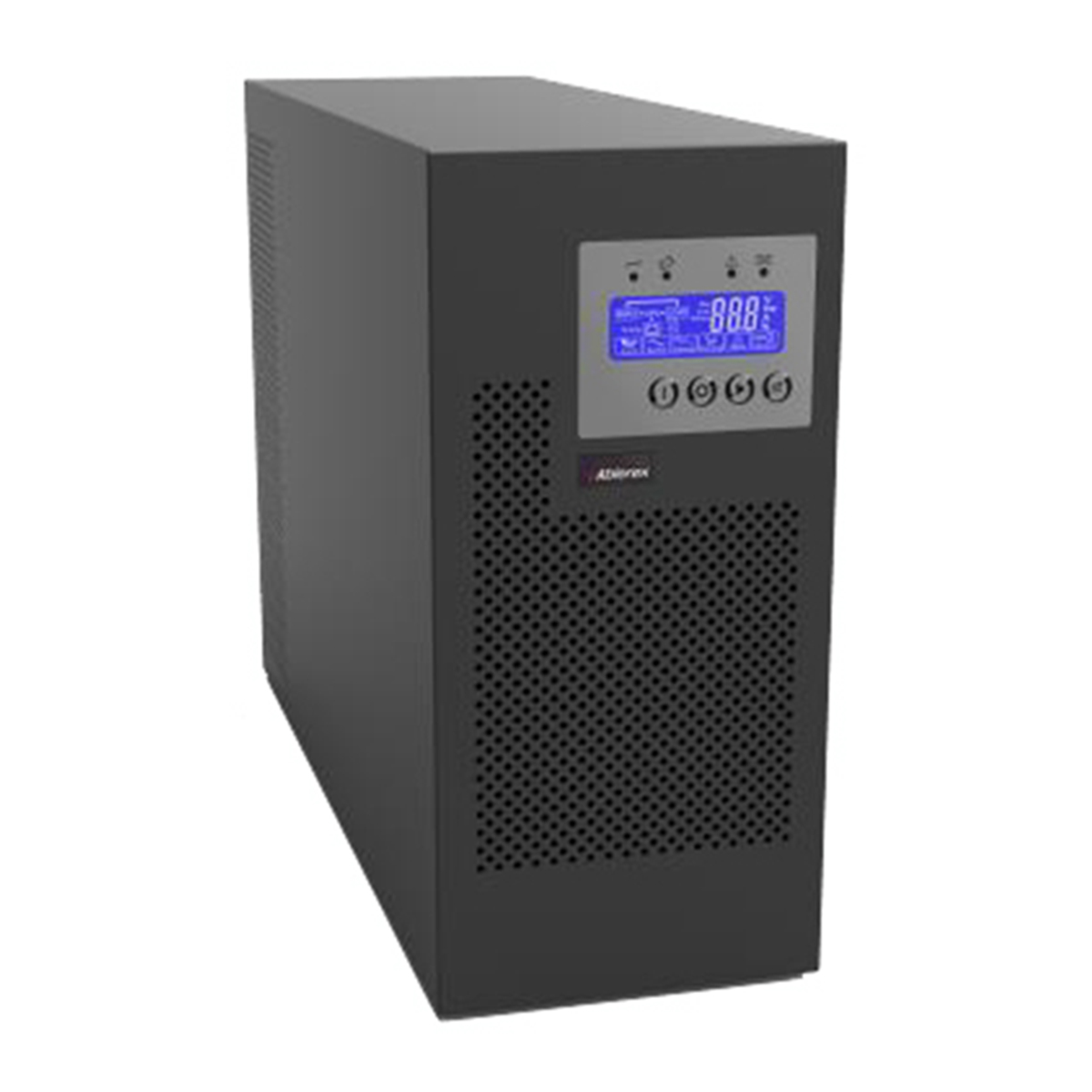

Ablerex EVO 2000 Tower 2KVA/1800W Online Double Conversion Ups
The Ablerex EVO Series is an on line double conversion UPS, density optimized (up to 10 000 VA) powered system Structural evolution maximize backup time while reducing energy cost – True On line Double Conversion Technology – Advanced Digital Control Technology – Wide Input Voltage/Frequency Window – 0.9 Output Power Factor – Active Harmonic Current Control – LCD Mimic Display Panel – Smart ECO mode – Patent Backup Runtime Estimation – Optional Interface Slot for Communication Flexibility
Specification
Model EVO 2000
Input 110Vac~300Vac**
Frequency 45Hz~65Hz
Phase Single Phase with Ground
Output
Capacity 2000VA/1800W
Voltage 200/208/220/230/240
Frequency 3Hz or 1Hz (selectable)
Harmonic Distortion <3% (at full linear load)
Current Crest Factor 3:1
Transfer Time (AC to DC) 0ms
Efficiency 90%
Waveform Pure Sine Wave
Battery
Number of Batteries 4pcs
Type & Capacity Sealed Lead Acid Maintenance Free, 12V/7AH or 12V/9AH upon request
Rated Battery Voltage 48Vdc
Display
LCD Input Voltage / Input Frequency / Output Voltage / Output Frequency / Load Percentage / Battery Voltage / Temperature
Alarms
Audible and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
Full Protection Overload, Over Temperature, Short Circuit, Discharge, Overcharge
Special Features
DC Start Yes
Physical
Dimension, W x D x H (mm) 151x444x322
Weight (kg) 19
Outlets*** 1x Schuko +3x IEC-C13
Interface
Communication Port Standard: USB and RS232
