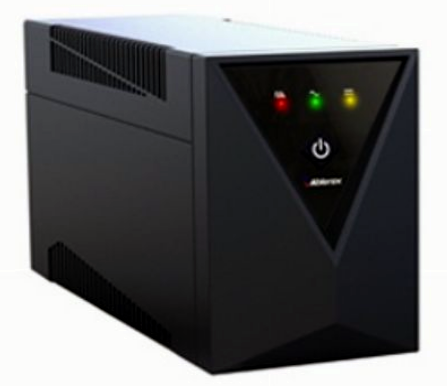

Ablerex GR650 650VA / 360W UPS w/ LED Display
Built-in AVR LED Display AC Auto Restart Cold start function Input Voltage Range 160-Vac-290Vac Output Capacity 360W 220/230/240Vac Frequency Range 50/60Hz Transfer Time 2-6ms Battery Type 12V/7Ah x 1 Recharge Time 4-6 Hours
Specification
Input | |
Voltage | 160Vac ~ 290Vac |
Frequency | 45Hz ~ 65Hz (+/- 3Hz) |
Output (AC mode) | |
AVR Regulation | Increase output 15% |
With boost and buck | (input -9% ~ -25%) |
Decrease output 15% | |
(input +9% ~ +25%) | |
Output (Inv. mode) | |
Voltage | 220/230/240Vac +/- 10% |
Frequency | 50/60Hz +/- 1Hz |
Waveform | Simulated Sine Wave |
Capacity | 650VA /360 W |
Transfer Time | 2ms ~ 6ms Typical |
Backup Time | 5 ~ 30mins depending on typical IT load |
Battery | |
Type | Sealed Maintenance-free Lead Acid VRLA Type |
Capacity | 12V/7AH |
Quantity | 1pc |
Recharge Time | 4 ~ 6 hours (to 90%) |
Function | |
DC Start | Yes |
Plug-in Charging | Yes |
Site Wiring Fault Indicator | Yes |
Advanced Discharge Battery management | Yes |
Display | |
LED (Standard) | 3 LEDs for Line mode, Battery mode and Fault |
Protection | |
Overload AC mode | >100% Input fuse blown and Buzzer continuously sounds |
Overload Inverter mode | >100% Buzzer continuously sounds until battery cut-off |
Short Circuit | Shuts down immediately |
Modem (Optional) | RJ11 |
Network (Optional) | RJ45 |
Alarm | |
Battery mode | Buzzer sounds every 1sec |
Battery Low | Buzzer sounds every 0.1sec |
Physical | |
Dimension (W×H×D) | 100 × 140 × 292mm |
Net Weight | 4.5 Kgs |
Output Connection*** | 4 x Nema 5-15P |
Environment | |
Operation Temperature | 0 ~ 40ºC |
Operation Humidity | 95% RH Maximum, Non-condensing |
Altitude | 1000m without Derating |
Noise Level | ≤ 40dB |
Computer Interface | |
Interface Type (Optional) | USB Communication |
Interface Type (Optional) | RS232 Communcation |
Compatible Platforms | Microsoft Windows Series,Linux, Mac, etc. |
Standards and Certifications | |
Safety Standard | EN62040-2 |
EMC/Surge Standard | EN61000-3-2, EN61000-3-3 |
Mark | CE |
Other Manufacturer's Standard | |
ISO | 9001 and 14001 |
