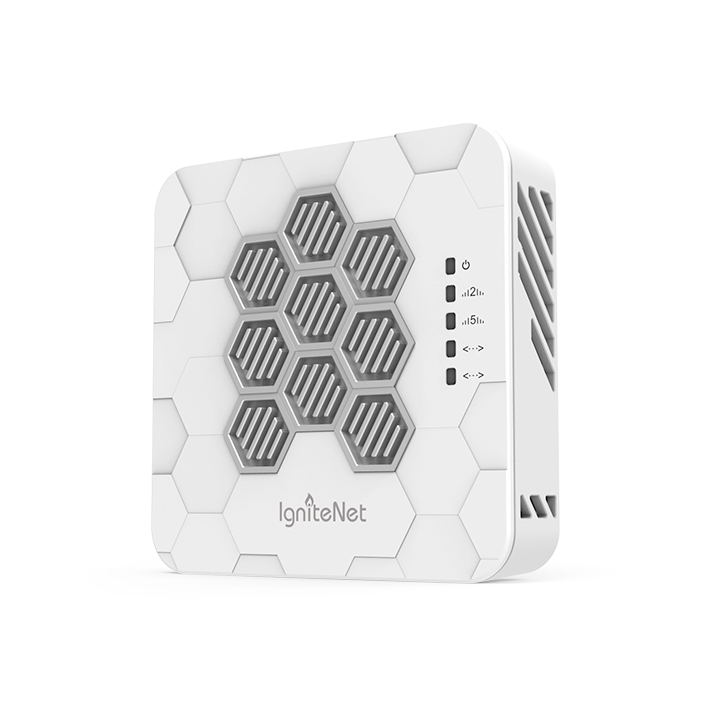

IgniteNet Spark™ AC Wave2 Mini PoE

Spark™ AC Wave2 Mini PoE Cloud-Enabled Indoor AP IgniteNet™’s Spark™ AC Wave2 Mini PoE is one of the most cost-effective, covert, cloudmanaged 802.11ac Wave2 access point on the market. The Spark™ AC Wave2 Mini PoE contains 2 independent, concurrent operation radios – one 802.11ac (5GHz) radio and one 802.11n (2.4GHz) radio – capable of delivering blisteringly fast wireless speeds. The sleek design of the Spark™ AC Wave2 mini PoE allows it to be placed inconspicuously in both offices and homes, bringing fast wireless connections to hard-to-reach locations. The Spark Wave2 mini PoE is the latest version of the highly popular Spark Wave2 mini with similar specs, however it includes two Gigabit Ethernet ports (vs. a single 1G port + 100M port) and adds 802.3af PoE powering (vs. DC jack input), which allows powering it with PoE switches. Robust Yet Simple Mounting Options The Spark™ AC Wave2 Mini PoE can be wall, ceiling, or desktop mounted, greatly simplifying installations in both offices, retail shops and many other applications. AC Wave2 Features for Performance The Spark™ AC Wave2 Mini PoE features the latest 802.11ac standard including MU-MIMO and enhanced beam forming – giving the best price/performance ratio in the market. Dual Band AC1200 Wave2 Operation The Spark™ AC Wave2 Mini PoE is capable of operating simultaneously at 2.4GHz (802.11b/g/n) as well as 5GHz (802.11a/n/ac) to supply ample throughput for the most demanding applications. Cloud-Enabled Networking The IgniteNet™ Spark™ AC Wave2 Mini PoE is cloudenabled out of the box allowing for easy, highly scalable installation, configuration, and management. https://www.ignitenet.com/downloads/Spark_Wave2_mini_PoE_datasheet_3.pdf


Specification

HARDWARE FEATURES
› 2x 1000 Base-T Ethernet Port
› Dual flash image support
› Integrated Bluetooth 2.1/ 4.1
LEDs
› Power, Wireless 2.4, Wireless 5, ETH 1, ETH 2
DIMENSIONS (L x W x H )
› 83 x 64 x 22 mm (3.27 x 3.31 x 0.87 inch)
WEIGHT
› 108 g (0.24 lb)
POWER
› 802.3af Pover over Ethernet
OPERATING ENVIRONMENT
› Operating Temperature: 0 to +50Cº (32 to 122 F)
› Store Temperature: -40 to 70Cº (-40 to 158 F)
REGULATORY / STANDARDS COMPLIANCE
› FCC/IC
› CE
RF PERFORMANCE (TX)
› 2.4 GHz: 25 dBm @ 6Mbps, 18 dBm @ 300Mbps
› 5 GHz: 23 dBm @ 6Mbps, 13 dBm @ 866Mbps
RF PERFORMANCE (RX)
› 2.4 GHz: -90 dBm @ 6Mbps, -73 dBm @ 300Mbps
› 5 GHz: -90 dBm @ 6Mbps, -58 dBm @ 866Mbps
ANTENNA
› 2.4 GHz: 4 dBi omni-directional
› 5 GHz: 5 dBi omni-directional
KEY FEATURES
› Supports Service Provider and Enterprise type networks
› Stand-alone or Cloud-controlled operating modes
› AP/Client/Client WDS modes with Flexible Bridging
and Routing
› 802.11a/b/g/n/ac, 2×2, Dual Band Dual Concurrent
( 2.4GHz and 5GHz)
› Supports up to 8 SSIDs per radio
› IEEE 802.11e Wi-Fi Multimedia (WMM-QoS)
› WPA/WPA2-PSK, WPA/WPA2-Enterprise with 802.1X
EAP-TLS, EAP-TTLS, EAP-GTC, EAP-MSCHAPv2
TKIP and AES encryption
› Admission control by client MAC address
APPLICATIONS
› Enterprise AP
› Managed WiFi Services
› WiFi Extension
