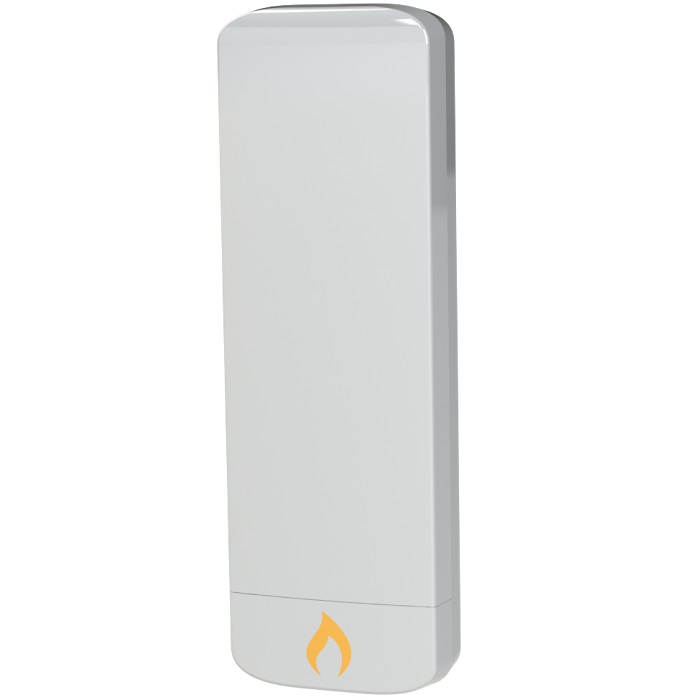

IgniteNet SF-AC1200-US

SkyFire™ AC Cloud-Enabled Outdoor AP/CPE/PTP IgniteNet™’s SkyFire™ AC is the world’s first outdoor dual-radio (dual-band concurrent) AP/ CPE/PTP featuring the newest wireless and cloud technologies. The SkyFire™ AC contains 2 ultra-high powered 2×2 MIMO radios with one 802.11ac (5GHz) radio and one 802.11n (2.4GHz) radio capable of delivering blisteringly fast wireless speeds. The SkyFire™ AC is also available in single-band, single-radio versions to meet a variety of customer requirements and challenges. The innovative IP-55 standards rated enclosure, allows SkyFire™ AC to withstand harsh and bring fast wireless connections to hard-to-reach locations. Cloud-Enabled Networking The IgniteNet™ SkyFire™ AC is cloud-enabled out of the box allowing for easy, highly scalable installation, configuration, and management. Dual Band AC1200 Operation The SkyFire™ AC is capable of operating simultaneously at 2.4GHz (802.11b/g/n) as well as 5GHz (802.11a/n/ac) to supply ample throughput for the most demanding applications. Powerful, Flexible Configuration The SkyFire™ AC can operate either as a stand-alone access point or as a coordinated, cloud-managed access point, easily meeting the requirements of any installation. Robust Weather-Resistant Design The SkyFire™ AC features a hybrid metal/plastic design built to withstand the harshest environments including precipitation, hot/cold weather and high/low humidities. https://www.ignitenet.com/downloads/datasheets/Skyfire-AC-datasheet.pdf


Specification

HARDWARE FEATURES
› 1 x Gigabit Ethernet Port (PoE IN)
› 1x 10/100 Fast Ethernet Ports
› 1x USB 2.0 Port (optional)
› Dual flash image support
› IP-55 standards rated enclosure
LEDs
› Power, Ethernet, Wireless, Health/Status, Aiming
DIMENSIONS (L x W x H )
› 280 x 90 x 50 mm (11.02 x 3.54 x 1.97 inch)
WEIGHT
› 500 g (1.1 lb)
POWER
› 24V/1A passive Gigabit PoE
OPERATING ENVIRONMENT
› Operating Temperature: -40 to +70Cº (-40 to 158 F)
› Store Temperature: -40Cº to 70Cº (-40 to 158 F)
› Operating Humidity: 10 to 90% non-condensing (RH)
REGULATORY / STANDARDS COMPLIANCE
› FCC/IC› CE
RF PERFORMANCE (TX)
› 2.4GHz: 30dBm @ 6Mbps, 27dBm @ 300Mbps
› 5GHz: 28dBm @ 6Mbps, 24dBm @ 866Mbps
ANTENNA
› 2.4GHz: Various options, see SKU
› 5GHz: Various options, see SKU
KEY FEATURES
› Supports Service Provider and Enterprise type networks
› Stand-alone or Cloud-controlled operating modes
› AP/Client/Client WDS modes with Flexible Bridging
and Routing
› 802.11a/b/g/n/ac, 2×2, Dual Band Dual Concurrent
( 2.4GHz and 5GHz)
› Supports up to 8 SSIDs per radio
› Optional single band available
› IEEE 802.11e Wi-Fi Multimedia (WMM-QoS)
› WPA,WPA2-PSK,WPA2-AES, PSK and Enterprise
› Admission control by client MAC address
APPLICATIONS
› Fixed Wireless Access (broadband)
› 3G/4G Offload
› Managed WiFi Services
